Industrial Signal Enclosures & Telecom Racks
High-reliability, IP65 weatherproof, dynamic thermally-managed cabinets customized for municipal traffic control, 5G telecom deployment, and automated surveillance networks.

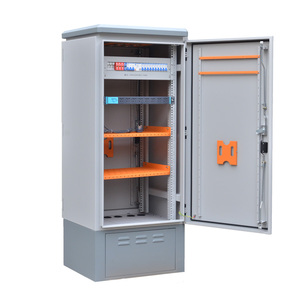

Harwell OEM Outdoor Cabinet Telecom 6U 9U 12U 15U 18U 24U 25U 19-inch Racks Telecom Cabinet

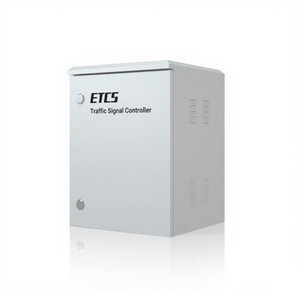

Intelligent Traffic System Traffic Signal Cabinet New Design for Roadway Traffic Light Control

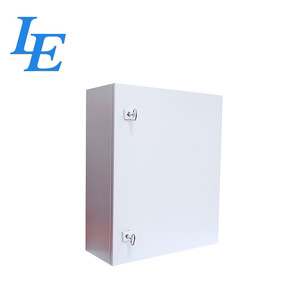

Telecom Outdoor Cabinet Waterproof Rack IP65 Network Mini Wall Mounted Cabinet Outdoor Telecommunication Cabinet
Factory Custom BSW Remote Monitoring Outdoor IP65 Weatherproof Traffic Signal Controller Cabinet for Smart City
Custom Outdoor Traffic Light Housing Traffic Signal Enclosure Waterproof Powder Coated Metal LED Traffic Signal Cabinet

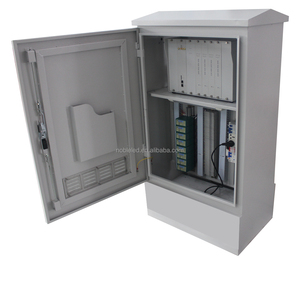

High-Capacity Industrial Traffic Signal Controller Cabinet System Enclosure

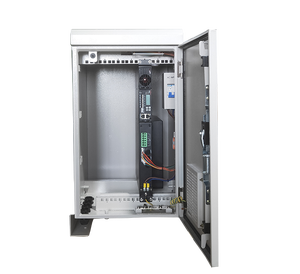

12U Telecommunication 5G Outdoor Cabinet IP55 Telecom Cabinet SNMP Function RS485 Interface

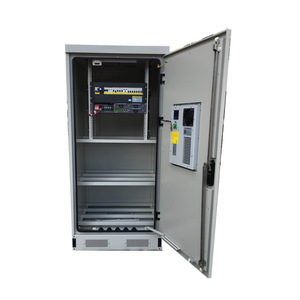

Railway Signal Coverage Communication Base Station Outdoor Integrated Cabinet Metal Network Cabinet
Precision OEM Engineering & Custom Fabrication Standards
Since 1992, Trafitronics India Pvt Ltd has operated as an original equipment manufacturer specializing in industrial traffic control signal cabinets, outdoor telecommunication rack enclosures, and smart-city edge deployment housings. Operating out of an advanced 29,000 sq. ft. ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certified manufacturing plant located in MIDC Bhosari, Pune, India, our engineering capabilities encompass the complete lifecycle of structural metal design, precision SMT electronics integration, robotic powder coating, and environmental testing.
Unlike third-party trading entities or simple sheet metal press shops, our engineering team manufactures custom OEM signal cabinets designed to withstand harsh outdoor deployments, extreme ambient thermal gradients (-20°C to +75°C), high-salinity coastal atmosphere exposure, and urban vibration stress.
In-House Sheet Metal Fabrication
CNC laser cutting, automated bending, continuous seam TIG/MIG welding, and robotic stud insertion for marine-grade 304/316 stainless steel, extruded aluminum, and cold-rolled galvanized iron enclosures.
Advanced Surface Pre-Treatment
8-stage chemical tank dipping, zinc-phosphate conversion coating, and high-durability electrostatic outdoor thermosetting polyester powder coating (80–120 microns) tested for 1,000+ hours of salt spray exposure.
Integrated Electronics & SMT Lines
Surface-mount technology (SMT) automated assembly lines producing constant-current LED drivers, modular DIN-rail switching power supplies, surge protection devices (SPD), and RS485/SNMP telemetry cards in-house.
Information Gain Insight for Tender Specifiers: Generic commercial cabinets often suffer from gasket degradation and internal condensation buildup leading to logic board shorts within 18 months. Trafitronics custom signal cabinets feature polyurethane (PU) continuous foam gasket pouring combined with pressure equalization vents (IP68 solar-rated hydrophobic membranes), keeping internal humidity below 45% non-condensing.
Enclosure Construction Materials & Environmental Protection Comparison
Selecting the optimal cabinet substrate is critical for matching site environmental hazards, lifecycle expectations, and structural load constraints. Below is an engineering comparison matrix designed for municipal ITS procurement engineers and system integrators.
| Material Grade | Yield Strength & Durability | Corrosion Resistance | Thermal Dissipation Rate | Primary Industrial Application |
|---|---|---|---|---|
| Galvanized Steel (GI) 1.5mm - 2.5mm Gauge |
High Structural Rigidity, Vandal-Resistant | Moderate (Powder Coated Required) | 50 W/m·K | Urban Roadway Traffic Controller Cabinets, Municipal Intersection Hubs |
| Marine Stainless Steel 316 1.5mm - 2.0mm Gauge |
Maximum Mechanical & Impact Resistance | Superior (Chlorides & Saline Resistant) | 16 W/m·K | Coastal Highway Signal Systems, Ports, Offshore Toll Plaza Racks |
| Extruded Aluminum Alloy 5052/6063 | Lightweight, Superior Weight-to-Strength | Excellent (Self-Passivating Layer) | 200 W/m·K | 5G Telecom Base Stations, Pole-Mounted Mini Network Cabinets |
| Double-Walled Insulated Metal | Thermal Isolation for Sensitive Battery Sets | High (Polyurethane Core Insulation) | Thermal Barrier (R-Value 6.5) | Solar Integrated Traffic Signals, Battery Power Reserve Backup Bays |
Future Procurement Trends in Industrial Signal & Traffic Enclosures (2025–2035)
The global infrastructure sector is transitioning from passive junction box enclosures toward high-density, intelligent edge-compute enclosures. As city authorities integrate Adaptive Traffic Control Systems (ATCS), V2X (Vehicle-to-Everything) communications, and automated speed enforcement cameras, procurement criteria for signal cabinets have evolved rapidly.
1. Transition from Passive Cabinets to Edge-Compute Hubs
Modern signal cabinets no longer merely house relay switches and electro-mechanical timers. Next-generation procurement specifications require internal space allocations for AI edge accelerators (such as NVIDIA Jetson or ARM-based neural processing units) that execute real-time video analytics for multi-arm junction optimization. Signal cabinets must feature 19-inch modular rack spaces (6U to 25U) with integrated vibration isolators.
2. Standardized Remote Health Monitoring via SNMP v3 & MQTT
Future-proofed municipal tenders specify integrated cabinet management systems (CMS). Internal telemetry sensors continuously monitor cabinet door intrusion, ambient internal temperature, humidity levels, AC mains voltage dips, battery health, and fan tachometer speeds. Data is transmitted via secure SNMP v3 or lightweight MQTT protocols directly to Central Traffic Management Software (CTMS).
3. Advanced Thermal Management: Passive Heat Exchangers & Peltier Cooling
With high-performance computing devices generating significant heat in localized enclosures, fan-only air cooling is insufficient, especially in desert or tropical climates. Procurement mandates are shifting toward closed-loop heat exchangers, heat-pipe cooling plates, and thermoelectric (Peltier) cooling units that maintain an IP65 envelope without pulling dust, ambient humidity, or corrosive salt haze into the electronics bay.
4. Universal Renewable Power & Hybrid Microgrid Ready
As smart cities demand uninterrupted 24/7 uptime for traffic signals and emergency communications, cabinets are specified with dual-input Automatic Transfer Switches (ATS) capable of seamlessly blending grid power, lithium iron phosphate (LiFePO4) energy storage systems (ESS), and MPPT solar PV arrays.
Architectural & Technological Evolution of Intelligent Roadway Cabinets
Over the past three decades, the design geometry and internal layout of signal controller cabinets have undergone four distinct generational shifts:
Generation I: Electro-Mechanical
Heavy steel structures, analog cam timers, open terminal blocks, and zero environmental sealing. High vulnerability to dust ingress, water damage, and pest intrusion.
Generation II: Microprocessor Standard
NEMA TS1 & Caltrans 332 cabinet standards introducing card racks, basic backplanes, and rudimentary gasket seals with manual override doors.
Generation III: Ethernet & NEMA TS2
High-speed bus communications, intelligent power distribution units (PDU), hot-swappable bus interface units (BIU), and IP55 weatherproofing gaskets.
Generation IV: Smart-City Connected Hubs
Unified ITS cabinets featuring integrated V2X roadside units (RSU), 5G NR small-cell base stations, radar speed detector processing, and cyber-secure hardware encryption.
Frequently Asked Questions for OEM Buyers
Direct answers to engineering, quality compliance, custom manufacturing, and global dispatch questions.
Partner with an Established OEM Enclosure Manufacturer
Need customized CAD drawings, tender compliance documentation, or rapid factory pricing for your upcoming traffic control or telecom infrastructure project?
