Featured Speed Display Systems & Automotive Clusters
OEM/ODM wholesale solutions engineered for highway speed management, commercial vehicle instrumentation, and aftermarket automotive electronics.

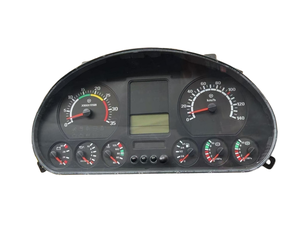

New 24V Combination Instrument Panel for Zhongtong Bus VT-ZB Speed Display Assembly

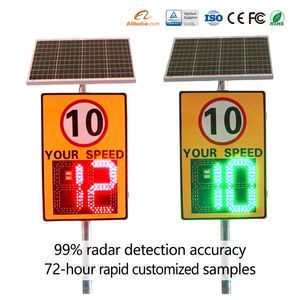

Portable LED Traffic Radar Speed Sign & Solar Radar Sensor Feedback Display

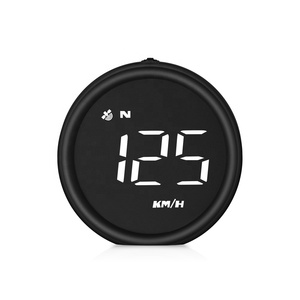

G1 Dual-Mode Beidou + GPS Speedometer with 10Hz Refresh Rate & Alarm

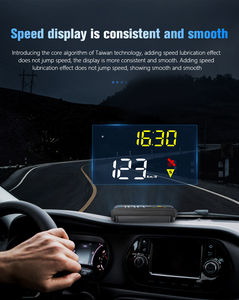

M17 OBD2 + GPS Head-Up Display RPM Water Temp DTC Diagnostics Meter

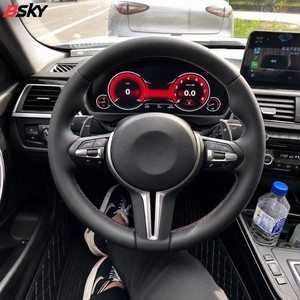

Upgraded Digital LCD Speed Display Cluster Instrument for BMW F-Series Chassis

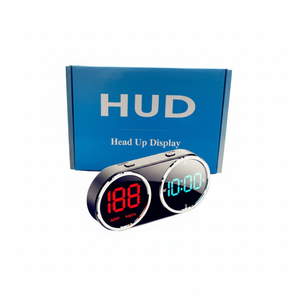

APL0603 Windshield Reflection Digital LED Speedometer HUD Gauge

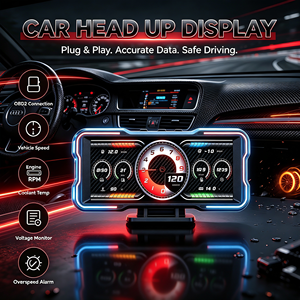

Universal P7 Smart HUD Dashboard Speedometer & Turbo Pressure Gauge

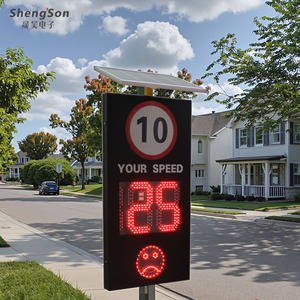

Outdoor Autonomous Solar-Powered Radar Speed Monitor for Highway Safety
China Wholesale Speed Display Manufacturing Landscape: Architectural Overview
The global demand for high-precision speed display systems—spanning outdoor traffic-calming radar signs, commercial bus instrument panels, and consumer automotive HUD units—has established China as the primary hub for high-volume, cost-optimized, and technically advanced electronics manufacturing. As municipal transit authorities, highway contractors, and automotive tier-1 suppliers seek reliable original equipment manufacturers (OEMs) and original design manufacturers (ODMs), understanding the technological distinctions, quality assurance protocols, and hardware integration matrix is vital for procurement efficiency.
Modern speed displays rely on three main technology stacks: 24.125 GHz K-Band Doppler Radar micro-sensors for municipal speed feedback; High-speed CAN-bus (Controller Area Network) J1939 controllers for bus/truck LCD instrument clusters; and Dual-Constellation GNSS (GPS + Beidou) 10Hz positioning engines for universal aftermarket HUD gauges. China’s manufacturing ecosystem integrates SMT (Surface Mount Technology) assembly lines, automated optical inspection (AOI), photometric darkrooms, and environmental stress screening (ESS) under unified ISO 9001, ISO 14001, and ISO 45001 quality management frameworks.
Core Speed Display Categories & Technical Taxonomy
When specifying speed monitoring hardware for wholesale procurement, engineering buyers classify systems by operational environment, interface protocols, and optical requirements:
- Doppler Radar Traffic Feedback Signs: Designed for highway speed enforcement, school zones, and arterial roadways. Utilizing 24.125 GHz K-band microwave radar sensors, these displays measure vehicle speeds up to 300 meters away with an accuracy of ±1 km/h. They incorporate high-luminance LED matrix boards (up to 8,000 to 10,000 nits) equipped with automatic daylight dimming photo-sensors and IP65/IP67 weather-sealed aluminum or polycarbonate enclosures.
- Commercial Vehicle & Bus Digital Clusters: Direct OEM replacement instrument panels (such as 24V assemblies for Zhongtong, Yutong, and King Long buses). Powered by high-reliability automotive microcontrollers (STMicroelectronics, NXP) and real-time operating systems (RTOS/Linux), these units process CAN-bus J1939/ISO 11898 data frames to render speed, engine RPM, pneumatic brake pressure, coolant temperature, and DTC fault diagnostics without input latency.
- Passenger Car Full-LCD Instrument Upgrades: Specialized digital dashboard upgrades for premium chassis (e.g., BMW F-Series F10/F15/F02). These systems replace legacy mechanical needle gauges with 12.3-inch high-definition TFT displays (1920x720 resolution). They preserve factory optical fiber MOST networks, steer wheel controls, and HUD outputs while introducing customizable UI modes (Comfort, Sport, Eco).
- Vehicle HUDs & Smart OBD2/GPS Gauges: Aftermarket driver assistance electronics projecting critical vehicle metrics directly onto windshields or dedicated combiner screens. Utilizing dual OBD2 PID diagnostic polling (ISO 15765-4) alongside 10Hz Beidou-GPS satellite tracking, these units deliver multi-parameter readouts including turbo boost, oil temp, 0-100 km/h acceleration testing, and over-speed fatigue alerts.
Speed Display System Architecture Matrix
Comparative technical specifications for procurement engineering teams evaluating speed indication hardware.
| System Classification | Core Sensor / Interface | Operating Voltage | Luminance / Display Tech | Ingress / Temp Rating | Primary Target Market |
|---|---|---|---|---|---|
| Outdoor Radar Speed Sign | 24.125 GHz K-Band Doppler Radar | 12V DC / 110-240V AC / Solar | 8,000–10,000 nits Ultra-Bright LED | IP65 / IP67 -40°C to +80°C | Municipal Roads, Highway Safety |
| Bus Combination Cluster | CAN-bus J1939 / Analog Sensors | 18V – 32V DC (24V Nominal) | LCD Display + Stepper Motors | IP54 Dust Proof / Anti-Vibration | Heavy Commercial Vehicles & Buses |
| BMW LCD Digital Cluster | CAN-bus / MOST Fiber Network | 9V – 16V DC (12V Nominal) | 12.3" HD TFT (1920x720 pixels) | Automotive Grade (-30°C to +75°C) | Luxury Aftermarket Retrofits |
| Beidou + GPS Speedometer | 10Hz GNSS Engine (NMEA 0183) | 5V USB / 12V OBD2 Connector | High-Contrast LED / HUD Glass | Internal Cabin Use | Universal Passenger & Fleet Vehicles |
| OBD2 Diagnostic Gauge | High-Speed ISO 15765 CAN Protocol | 12V Automotive Grid | Multi-Color OLED / Windshield HUD | Internal Cabin Use | Performance & Tuning Enthusiasts |
Why Source Speed Displays from Our Enterprise
Combining over 30 years of in-house electronic engineering with state-of-the-art SMT manufacturing lines and rigorous compliance standards.
In-House Hardware & Firmware R&D
We do not trade black-box modules. Our dedicated electronic engineers program custom STM32 firmware, engineer constant-current LED driver circuits, and develop proprietary Doppler radar filtering algorithms in-house to guarantee consistent signal stability.
29,000+ Sq Ft Integrated Factory
Operated under strict ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certifications, our facility integrates high-speed SMT placement, automated potting for waterproofing, sheet-metal stamping, powder coating, and darkroom photometric testing.
Full Traceability & QA Audits
Every export consignment includes comprehensive Manufacturer Test Certificates in English covering luminous intensity output, insulation resistance, IP65/IP67 ingress verification, and 72-hour thermal burn-in stress logs.
Extreme Customization & Flexibility
Modify operational voltages (110V/220V AC, 12V/24V DC, or MPPT Solar), display digit sizes (100mm, 200mm, 300mm, or 400mm), arrow aspect geometry, casing colors (RAL matched), and language pictograms without extended tooling delays.
Export-Ready Logistics Packaging
Every unit is encased in custom-molded EVA high-density foam within heavy-duty double-wall corrugated cartons or fumigated wooden crates designed for sea container shipping and international air freight with zero damage guarantee.
Dedicated Engineering Support
From supplying full General Arrangement (GA) CAD drawings and CAN-bus wiring schematics during tender bidding to remote video-guided commissioning support, our technical desk serves contractors globally.
Future Industry Trends & Technology Sourcing Roadmap (2025–2030)
As traffic infrastructure becomes smarter and automotive cockpits transition toward total digitalization, B2B procurement teams must align their supply chains with key market evolutions. Sourcing speed displays requires looking beyond legacy 7-segment LED counters and mechanical gauges toward next-generation integrated platforms:
Connected Radar Displays
Future outdoor speed signs are abandoning standalone operation in favor of IoT LTE-M/NB-IoT and V2X (Vehicle-to-Everything) wireless modules. Speed displays now upload real-time traffic velocity histograms to municipal cloud servers while alerting approaching connected vehicles of upcoming curve hazards.
LiFePO4 & MPPT Micro-Grids
Off-grid traffic speed monitors are shifting to Lithium Iron Phosphate (LiFePO4) energy storage paired with Maximum Power Point Tracking (MPPT) solar charge controllers. This guarantees continuous 24/7 operation even during 10 consecutive days of heavy cloud cover or monsoonal rainfall.
Linux/Android Cockpit Architecture
Commercial buses and aftermarket automotive upgrades are rapidly adopting full-display liquid optical bonding LCD clusters and Augmented Reality HUDs. Sourcing demands are leaning heavily toward automotive-grade Linux OS chips capable of cold-booting within under 1.5 seconds.
Frequently Asked Sourcing Questions (FAQ)
Direct technical and commercial answers from our engineering managers for international buyers and distributors.
Q: What custom options are available for OEM wholesale orders of speed signs?
We provide complete OEM customizability including customized LED digit heights (100mm to 400mm), variable color speed thresholds (Green for compliance, Yellow for warning, Red for flashing over-speed), custom aluminum cabinet branding, integrated ANPR camera mounting brackets, solar micro-grid sizing, and RS485/Modbus or wireless telemetry protocols for remote data logging.
Q: How do your 24V bus combination instrument panels ensure CAN-bus compatibility?
Our bus combination instrument assemblies (such as Zhongtong VT-ZB 1U90137600005 38LQ1-01100-B18) are programmed with standardized SAE J1939 CAN-bus firmware protocol tables. They feature isolated transceiver circuits that prevent ground loops and electrical interference from bus alternators, ensuring instant plug-and-play synchronization with ECU speed signals, engine RPM, and fault codes.
Q: What is the advantage of 10Hz refresh rate in GPS/Beidou speedometers compared to 1Hz?
Standard 1Hz consumer GPS speedometers update velocity readouts only once per second, resulting in noticeable lag during rapid vehicle acceleration or braking. Our 10Hz dual-mode Beidou + GPS chips sample location and doppler position updates 10 times per second (every 100 milliseconds), eliminating readout latency and rendering smooth, real-time speed transitions matching physical wheel sensors.
Q: What test documentation and quality certificates are supplied with international orders?
Every wholesale shipment is accompanied by a formal Manufacturer Test Certificate (MTC) in English. Documentation covers ISO 9001/14001/45001 compliance logs, photometric darkroom LED intensity graphs (nits/cd/m²), IP65/IP67 water submersion test reports, insulation dielectric breakdown reports, and pre-shipment burn-in inspection photo records.
Q: What is the average lead time for wholesale manufacturing and export dispatch?
Standard OBD2/GPS HUD gauges and stock replacement speedometers typically ship within 7 to 10 business days. Custom-engineered traffic radar speed signs, solar-powered safety beacons, and bus combination clusters require 2 to 4 weeks depending on batch volume, housing powder-coating specifications, and localized firmware flashing.
Q: How do outdoor radar speed signs perform in extreme environmental conditions?
Our outdoor speed monitoring displays utilize IP65/IP67 powder-coated aluminum enclosures with UV-stabilized anti-glare polycarbonate visors. Internal electronics undergo conformal coating to prevent corrosion from coastal salt fog or high humidity. Systems operate seamlessly across temperature ranges from -40°C (-40°F) up to +80°C (+176°F).
Ready to Partner with China's Premier Speed Display Manufacturer?
Whether you need high-volume automotive HUD gauges, custom OEM bus instrument clusters, or municipal radar traffic speed signs, our engineering team is ready to review your technical specs and provide a competitive factory quotation.
